Bristol's expansion from a medieval port into a modern urban centre has left a complex legacy beneath its streets: centuries of made ground overlying the soft alluvium of the Avon Valley and the tidal deposits of the Floating Harbour area. The city's post-war reconstruction and recent Temple Quarter regeneration have repeatedly encountered compressible silts and organic clays where conventional shallow footings simply cannot perform. CPT testing provides the continuous stratigraphic profiles needed to identify these problematic layers before designing a stone column solution that transfers loads to competent strata. At depths where the Mercia Mudstone bedrock dips beyond 6-8 metres, vibro replacement becomes the most cost-effective path to meeting the 25 mm post-construction settlement limit specified in BS EN 1997-1 for typical commercial structures.
A well-designed stone column grid in Bristol's alluvium can reduce total settlement by 60-70% compared to untreated ground, bringing it within the 25 mm serviceability limit.

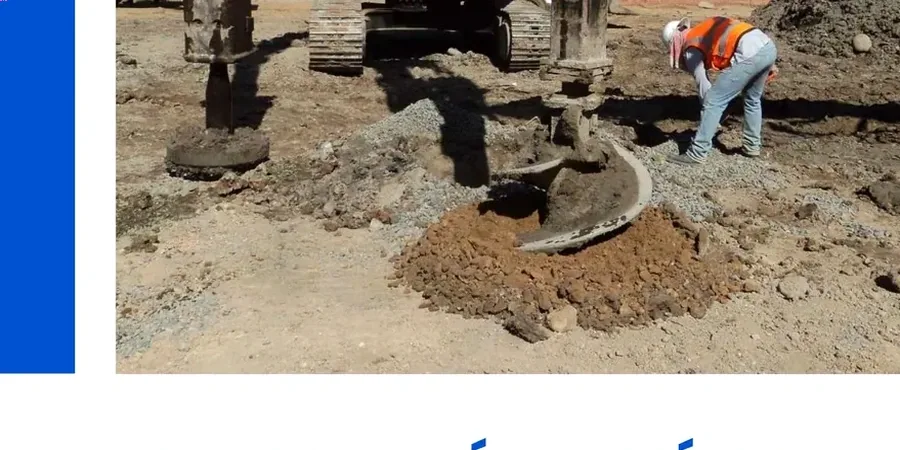

How we work
Local ground factors
The contrast between the stable limestone bedrock of Clifton's slopes and the compressible alluvium of the city centre could not be starker—a site on Redcliffe Hill may bear on competent Mercia Mudstone, while a plot just 200 metres away in the old river channel encounters 8 metres of soft clay. The principal risk in stone column design for Bristol sites is underestimating the secondary settlement of organic silts under long-term loading: columns reduce drainage path length but do not eliminate consolidation entirely. A second concern arises in near-waterfront locations where tidal drawdown can induce lateral spreading of the treated mass if the column shear resistance is insufficient. The design must also account for the possibility of encountering obstructions—old quay walls, buried lock structures, or timber piles—that can deflect the vibrator and create gaps in the column grid. Post-treatment verification via plate load tests or in-situ permeability testing confirms that the improved ground mass performs as modelled before foundation construction proceeds.
Explanatory video
Relevant standards
BS EN 1997-1:2004 (Eurocode 7: Geotechnical design – General rules), BS EN 14731:2005 (Execution of special geotechnical works – Ground treatment by deep vibration), BS 5930:2015 (Code of practice for ground investigations), ICE Specification for Ground Treatment (2nd edition, 2016)
Related services
Feasibility and Settlement Analysis
Development of the ground model from available GI data, including stratigraphic correlation across the site. We apply the Priebe method and finite element analysis (Plaxis 2D) to predict settlement under column-supported footings or embankments, delivering area replacement ratios and column layouts optimised for Bristol's layered soil profile.
Detailed Column Design and Specification
Preparation of designer's risk assessments, column schedules, and installation specifications compliant with BS EN 14731. The package includes column diameter, depth, grid geometry, stone grading requirements (typically 40-75 mm clean angular aggregate), and acceptance criteria for the trial column programme.
Post-Treatment Verification Testing
Independent validation of the improved ground through zone load tests, plate bearing tests, and post-installation CPT profiling between columns. We compare measured performance against design predictions and provide the verification report required for building control sign-off.
Typical parameters
Common questions
When are stone columns a suitable solution for a Bristol site?
Stone columns are particularly suited to Bristol's soft alluvial clays and silts where the undrained shear strength is between 15 and 30 kPa, and the compressible layer extends 4 to 10 metres deep. They work well for lightly to moderately loaded structures—two- to six-storey residential or commercial buildings, embankments, and ground-supported slabs—where total settlement needs to be controlled without resorting to piling. Sites with organic content above 5% or very sensitive clays may require additional assessment, as the vibratory installation can cause remoulding in the surrounding soil.
What is the typical cost range for stone column design in Bristol?
For a Bristol project, the design package—including feasibility analysis, detailed column layout, installation specification, and post-treatment verification—typically falls between £1,070 and £4,200 depending on site area, number of columns, and the complexity of the ground conditions. Sites with variable fill thickness or proximity to the Floating Harbour's tidal influence tend toward the upper end due to the additional analysis required.
How does the Floating Harbour's tidal regime affect stone column performance?
The Floating Harbour maintains a relatively stable water level, but the surrounding ground can still experience fluctuations in the phreatic surface, particularly during spring tides or storm events. The design must consider the buoyant unit weight of the soil in the zone of water level variation and check that the column's effective confining pressure is adequate. In some cases, a higher area replacement ratio near the perimeter of the treated zone compensates for reduced lateral confinement during low-water periods.
What verification is required after stone column installation in Bristol?
BS EN 14731 requires a minimum of one zone load test per 400 m² of treated area, supplemented by post-installation CPT or SPT profiles at 1-2% of column positions. For Bristol's Building Control acceptance, the verification report must demonstrate that the treated ground achieves the design modulus and that settlement under the proof load remains within the specified tolerance—typically less than 10 mm at 150% of the working load on a 1.5 m square plate.
