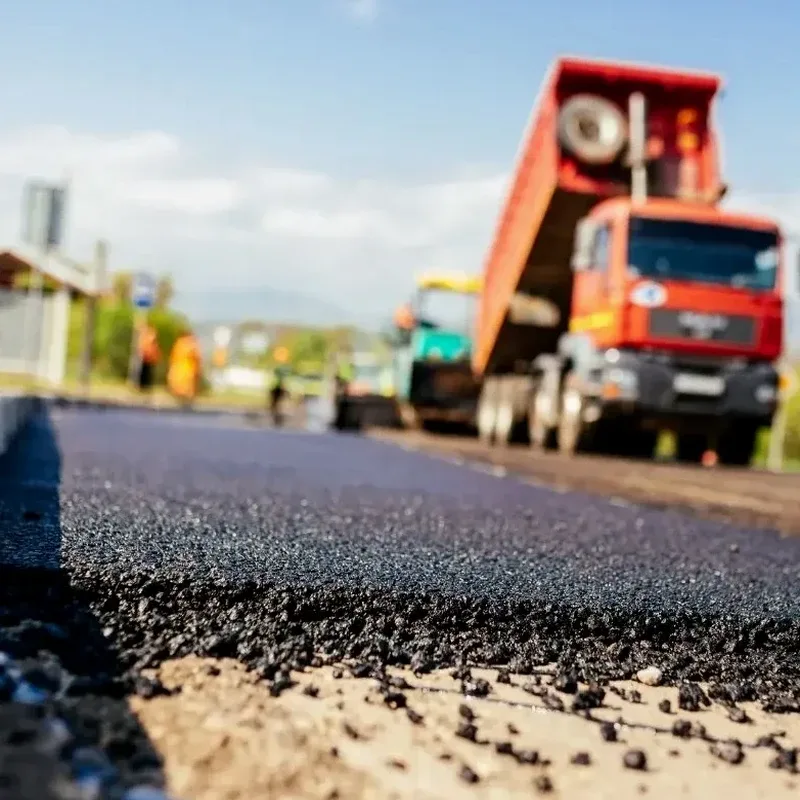

Before a single paver or roller moves onto a Bristol site, we are usually out there with a dynamic cone penetrometer and a nuclear density gauge, working alongside the groundworkers. The city’s geology shifts rapidly, from the Carboniferous limestone of the Avon Gorge to the soft alluvial clays along the Floating Harbour, and that dictates everything about pavement layer thickness. We take cores, measure in-situ density, and run plate load tests because a flexible pavement is only as good as the subgrade it sits on. In areas like Bedminster or St Philip’s, where historic fill is common, we often combine our pavement investigation with in-situ permeability tests to check drainage capacity before specifying the granular sub-base, which is critical given Bristol’s average 800 mm of annual rainfall. The aim is straightforward: a pavement structure that distributes traffic loads without cracking, rutting, or letting water undermine the formation level over a 20-year design life.
A flexible pavement only performs as well as its weakest layer. In Bristol, that weak layer is usually the subgrade, not the asphalt.
How we work
Local ground factors
Bristol’s post-war expansion buried a lot of infrastructure that no one mapped properly. In districts like Easton and Totterdown, we regularly encounter old cellar voids, Victorian drainage culverts, and backfilled quarries that create differential settlement nightmares for any pavement. The city sits at the confluence of the Avon and Frome rivers, so groundwater levels rise fast after heavy rain, turning a stiff clay subgrade into a soft, pumping layer within 48 hours. Ignoring these underground conditions leads to alligator cracking around manholes, edge break along kerblines, and longitudinal depression in the wheel paths. The repair costs dwarf the price of a proper ground investigation. We use trial pits and window sampling to map the formation level across the whole footprint, not just at two boreholes, because a pavement design is only as reliable as the ground model it is built on. When we find organic silt or peat lenses, we recommend either excavation and replacement or lime stabilisation before any aggregate goes down.
Relevant standards
DMRB CD 225 (Design for New Pavement Foundations), DMRB CD 226 (Design for New Pavement Construction), BS EN 1997-1:2004 + UK National Annex (Eurocode 7, Geotechnical design), BS 5930:2015+A1:2020 (Code of practice for ground investigations), TRL 615 (Design of pavements for industrial and commercial areas), EN 13108 series (Bituminous mixtures – Material specifications)
Related services
Subgrade Assessment and CBR Testing
In-situ soaked CBR tests using a dynamic cone penetrometer and laboratory CBR on undisturbed samples, providing the design CBR value for DMRB pavement thickness curves. We map subgrade variability across the site to avoid under-designed sections.
Pavement Layer Design to DMRB CD 225/226
Full pavement structural design including capping, sub-base, base, binder, and surface course thicknesses tailored to traffic loading, subgrade class, and material availability in the Bristol area. We check frost susceptibility and drainage requirements as standard.
Construction Quality Control and Plate Load Testing
Site validation of placed layers using nuclear density gauges, plate load tests (BS 1377) for modulus verification, and core sampling of bituminous layers. We confirm compaction levels meet specification before the next lift is placed.
Typical parameters
Common questions
How much does a flexible pavement design for a Bristol car park cost?
For a typical car park or small access road in Bristol, the pavement design package, including subgrade investigation, CBR testing, and thickness design report, ranges from £1,190 to £4,290 depending on the site area and number of test locations. Larger industrial yards or highways schemes with multiple pavement sections and traffic data analysis will fall towards the upper end or beyond.
What is the difference between DMRB CD 225 and CD 226 for pavement design?
CD 225 covers the design of the pavement foundation, which includes the subgrade, capping, and sub-base layers. CD 226 covers the design of the bound pavement layers: the base, binder, and surface courses, and it links the traffic loading to the required asphalt thicknesses. In practice we use both together, starting with CD 225 to establish a stable platform, then CD 226 to determine the bituminous build-up.
How do you handle soft ground for flexible pavements in Bristol?
Soft ground is common in Bristol, particularly in the alluvial zones near the Avon and Frome rivers. We assess the soaked CBR and if values are below 2%, we compare options: dig-and-replace with granular fill, lime/cement stabilisation of the upper 300 to 400 mm of subgrade, or a thicker capping layer with a geogrid reinforcement. The choice depends on the plasticity of the soil, groundwater conditions, and the programme constraints on-site.
