Bristol's growth from a medieval port to a modern hub has pushed construction onto some unforgiving ground. The old city clings to sandstone ridges, but the expansion south of the Avon and into the Floating Harbour backfills tells a different story entirely. What looks like solid ground on a topographic map often turns out to be metres of made ground overlying alluvial clays and running sands. Anyone who has tried to put a tower crane mat on Temple Meads alluvium without a proper ground investigation knows the sinking feeling that follows. In our experience, that's where a solid pile foundation design stops being an option and becomes the only sensible route to structural integrity. It's not about over-engineering; it's about reading the ground truth that borehole logs give you and designing for it. For deeper strata profiling before design, we often incorporate CPT testing to get a continuous read on tip resistance and sleeve friction, which helps refine the shaft friction calculations in the Avonmouth silts.
A pile is only as good as the ground investigation that defines its shaft friction and end-bearing capacity.
How we work
Local ground factors
The most common mistake we see on Bristol sites is designing piles based on a single deep borehole while ignoring the lateral variability of the alluvium. The Avon valley sequence can change from dense gravel to soft organic clay within thirty metres, and a pile that looks perfectly adequate on the desk study can end up with half the predicted shaft friction if that variability isn't caught. We have walked onto jobs where piles were already being installed and the refusal criteria didn't match the actual stratigraphy because the ground model was oversimplified. Fixing that mid-construction costs time and money that no one budgeted for. The other classic error is underestimating the down-drag from settling made ground around a pile group, which can add substantial compressive load that the structural design never accounted for. A proper pile foundation design includes a sensitivity check on all these factors, and it's far cheaper to do that on paper than in the ground.
Relevant standards
BS EN 1997-1:2004 (Eurocode 7) + UK National Annex, BS 5930:2015 (Code of practice for ground investigations), BS EN 12699:2015 (Displacement piles), BS EN 1536:2010 (Bored piles), ICE Specification for Piling and Embedded Retaining Walls (3rd edition)
Related services

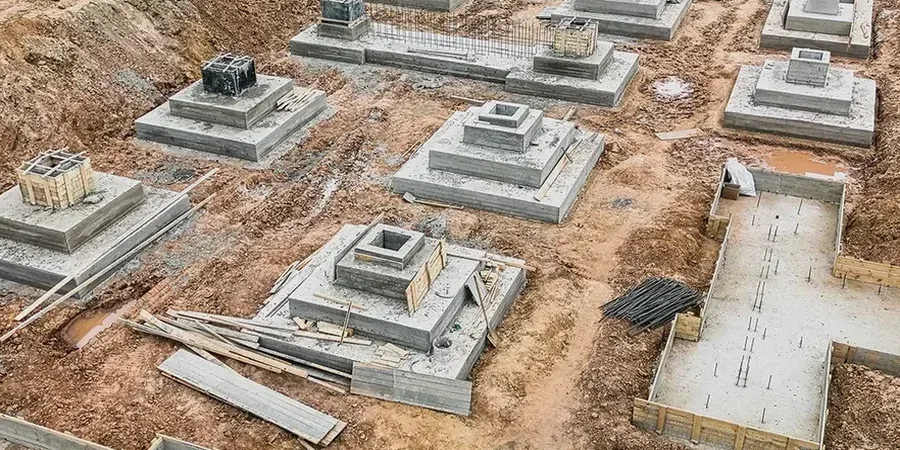

Single Pile and Pile Group Design
Axial capacity calculations using effective stress and undrained methods, with separate checks on shaft friction and end-bearing resistance for each distinct stratum encountered in the borehole logs.
Lateral Load and Moment Capacity
We model p-y curves for the specific soil layers on your site and check pile head deflection under working loads, critical for tall structures and bridge piers in the Avon valley.
Pile Testing Specification and Review
Specification of static load tests, rapid load tests, and integrity testing (PIT/CSL), with back-analysis of test results to validate or refine the design parameters.
Construction Monitoring and Validation
Review of pile installation records, concreting logs, and refusal criteria during the works, ensuring the as-built piles match the design assumptions and ground conditions.
Typical parameters
Common questions
How much does a pile foundation design for a typical Bristol project cost?
For most residential and light commercial schemes in Bristol, the design fee falls between £1,260 and £5,660, depending on the number of piles, the complexity of the ground profile, and whether we are specifying a pile test programme. A straightforward end-bearing pile group on Mercia Mudstone sits at the lower end; a scheme with significant lateral loads, down-drag assessment, and multiple pile caps across variable alluvium moves toward the upper end.
Do you only design bored piles, or do you cover driven and CFA piles too?
We cover the full range of pile types relevant to UK practice. In Bristol, that usually means bored cast-in-situ piles with temporary casing through the water-bearing layers, CFA piles where ground conditions suit continuous flight augering, and occasionally driven precast piles for lighter structures on the river terrace gravels. The choice depends entirely on the ground investigation data and site constraints.
How do you account for the variable ground conditions in the Avon valley?
We build a detailed 3D ground model from the borehole and CPT data, then run capacity calculations at multiple locations across the site. Where the alluvium thickness or mudstone weathering profile changes, we adjust the pile length and socket detail accordingly. We also include a sensitivity analysis on the undrained shear strength of the softer clay layers so the contractor knows the safe installation window.
What settlement criteria do you design to for pile groups?
We typically target total settlements under 25 mm and differential settlements under 10 mm between adjacent columns for framed structures, which is in line with the serviceability limits in Eurocode 7 and UK practice. For movement-sensitive equipment or facades, we tighten those criteria and use t-z or finite element analysis to check the group effect and the load transfer into the deeper mudstone.
