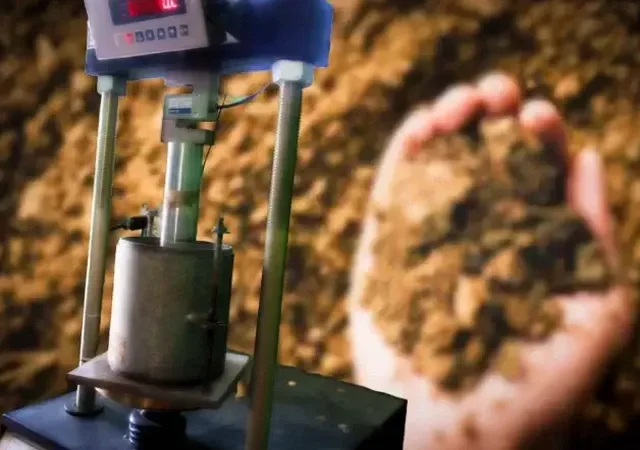

A pavement design based on assumed CBR values often fails in Bristol's variable ground conditions. Many contractors discover this only after base course cracking or asphalt rutting appears within the first year of service. The city sits on a geological mix of Triassic Mercia Mudstone, Carboniferous Limestone, and pockets of alluvial clay along the River Avon floodplain, meaning a single default CBR assumption is rarely adequate. Laboratory CBR testing under controlled moisture and density conditions removes that guesswork. The test measures the load-bearing capacity of subgrade or granular material against a standard penetration piston, producing a CBR percentage that feeds directly into road pavement thickness design. A CBR road test that follows BS 1377-4:1990 procedures ensures the pavement structure is neither over-engineered and costly nor under-designed and prone to early distress. For Bristol's expanding residential estates and commercial access roads, this data point is a non-negotiable design input.
A single CBR value from a representative sample can reduce pavement construction costs by avoiding unnecessary granular layer thickness.
How we work
Local ground factors
Bristol's average annual rainfall of approximately 800 mm, concentrated between October and January, makes moisture sensitivity the dominant risk in subgrade performance. A laboratory CBR test that omits the soaking phase will overpredict field strength and lead to under-designed pavements. The Mercia Mudstone that underlies much of the city centre weathers to a silty clay with moderate to high plasticity; when saturated, its CBR can drop by 60% or more compared to the as-compacted value. This is particularly relevant for residential estate roads in areas like Lockleaze or Hartcliffe where cut-and-fill operations expose weathered strata. Road designers who specify laboratory CBR testing on both natural subgrade and imported fill gain a clear picture of strength variability across the site. The soaked CBR value feeds directly into the design catalogue thickness charts in HD 26/06 or the relevant series 900 earthworks specification, dictating the capping and sub-base layers required.
Relevant standards
BS 1377-4:1990, BS EN 1997-2 (Eurocode 7, Geotechnical investigation), HD 26/06 (DMRB Vol. 7)
Related services
Soaked CBR for Subgrade Assessment
Four-day soaked CBR testing on undisturbed or remoulded subgrade samples, including swell monitoring and moisture content determination before and after soaking. Results reported with corrected CBR values and stress-penetration curves suitable for DMRB pavement design inputs.
CBR on Granular Sub-base and Capping
CBR testing on Type 1, Type 2, or 6F2 granular materials at specified density and moisture. Includes oversized particle removal and compaction to target dry density per BS 1377-4 procedures. Often combined with grading analysis and particle density tests for a full material acceptance package.
Typical parameters
Common questions
How much does a laboratory CBR test cost in Bristol?
A single-point laboratory CBR test, including compaction at one moisture-density condition plus the full 96-hour soaking phase and penetration test, typically ranges from £100 to £190 per specimen. The exact cost depends on whether the sample requires oversize removal, if swell measurement is needed, and the number of compaction points requested. Three-point CBR families for a single material type—testing at three moisture contents to establish the strength-moisture relationship—are priced accordingly. Bulk rates apply for multi-sample pavement investigation projects.
What is the difference between soaked and unsoaked CBR, and which one do I need for a Bristol pavement design?
An unsoaked CBR test measures the strength of the material at the compaction moisture content immediately after preparation. A soaked CBR test submerges the specimen in water for 96 hours under a surcharge weight before penetration, simulating long-term saturated conditions. For subgrade assessment in Bristol—where winter groundwater levels rise and the underlying Mercia Mudstone and alluvial clays are moisture-sensitive—the soaked CBR value is the correct design input. Unsoaked values are sometimes used for granular sub-base materials or for temporary works, but permanent road pavements should always be designed on the soaked CBR to avoid premature failure.
What sample size and quantity do you need for a laboratory CBR test?
Each CBR specimen requires approximately 6 kg of material passing a 20 mm BS sieve. For a single-point soaked CBR, we typically request a minimum of 10 kg of bulk sample to allow for oversize particle removal, moisture conditioning, and any necessary repeat compaction. If a three-point CBR family is required—testing across a range of moisture contents—the sample mass increases to roughly 25 kg. Disturbed bulk samples should be sealed in heavy-duty plastic bags and delivered to the laboratory within 24 hours of excavation. For undisturbed subgrade samples, 100 mm or 150 mm diameter core tubes are preferred, transported upright and protected from moisture loss.
